Rascal Venture 4-Wheel Mobility Scooter
SKU: RSC49RED1001
A four-wheel travel scooter with a swivel seat, adjustable tiller and armrests, and quick disassembly into five pieces for transport or storage.
Product inquiry
Interested in this product?
Call our team or send an inquiry with questions about this product.
Product details
Key features
- Swift Release Technology for five-piece disassembly

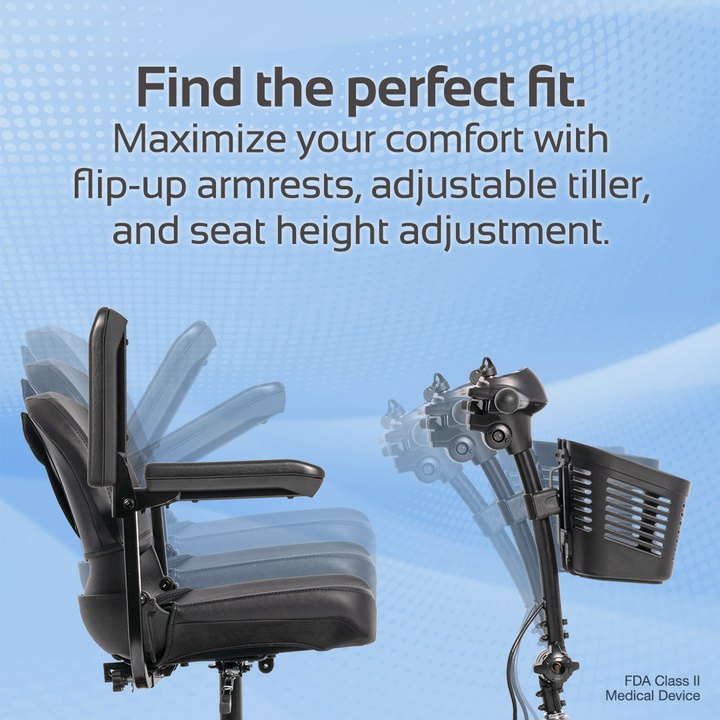

- Height-adjustable swivel seat with flip-up, width-adjustable armrests
- Adjustable steering tiller
- Front basket and rear seat storage pocket
- Solid, flat-free tires
- Regenerative and electromechanical braking
Overview
Product description

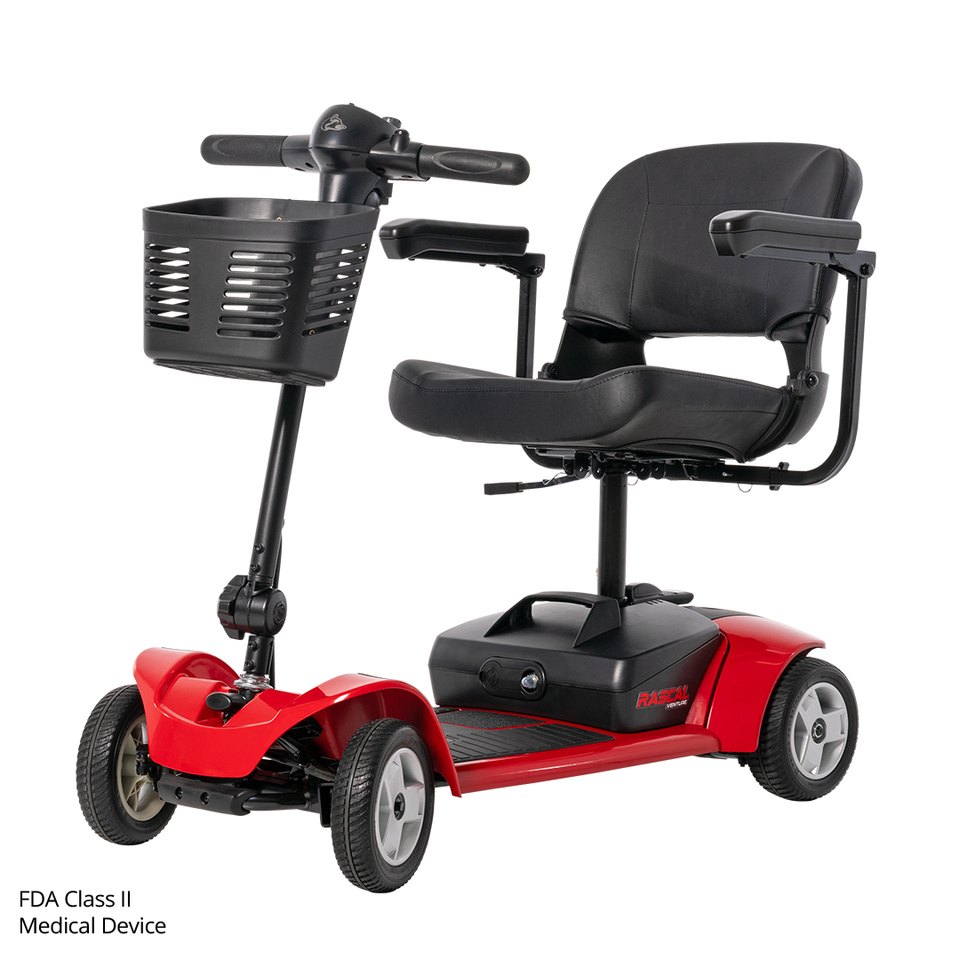

The Rascal Venture 4-Wheel combines a compact frame with a swivel seat and adjustable tiller, seat height and armrests. A front basket keeps small items within reach, while solid tires avoid punctures.
Swift Release Technology separates the scooter into five pieces for transport and storage. The removable battery pack uses an off-board charger. See the manufacturer’s manuals and specifications for operating instructions and performance conditions.
Measurements and options
Specifications
Performance
- Model
- RSC49 — 4-wheel
- Weight capacity
- 300 lb.
- Maximum speed
- Up to 4 mph; conditions affect performance.
- Range per charge
- Up to 8 miles at 200 lb.; up to 6.6 miles at 300 lb. Manufacturer estimates; actual range varies.
- Turning radius
- 46.75 in.
- Ground clearance
- 1.36 in. at motor
- Maximum rated slope
- 6°
- Maximum obstacle height
- 2 in. (ascending/descending)
Size and transport

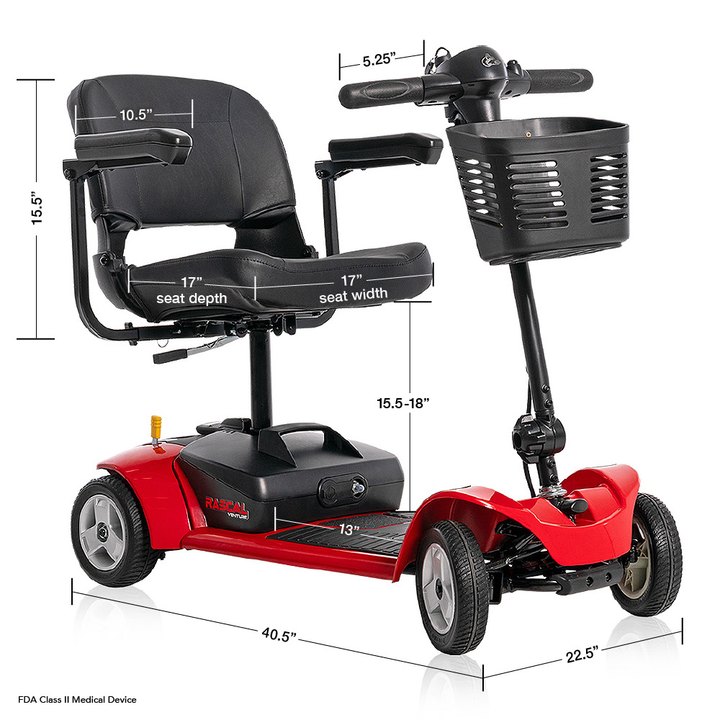

- Overall length
- 40.5 in.

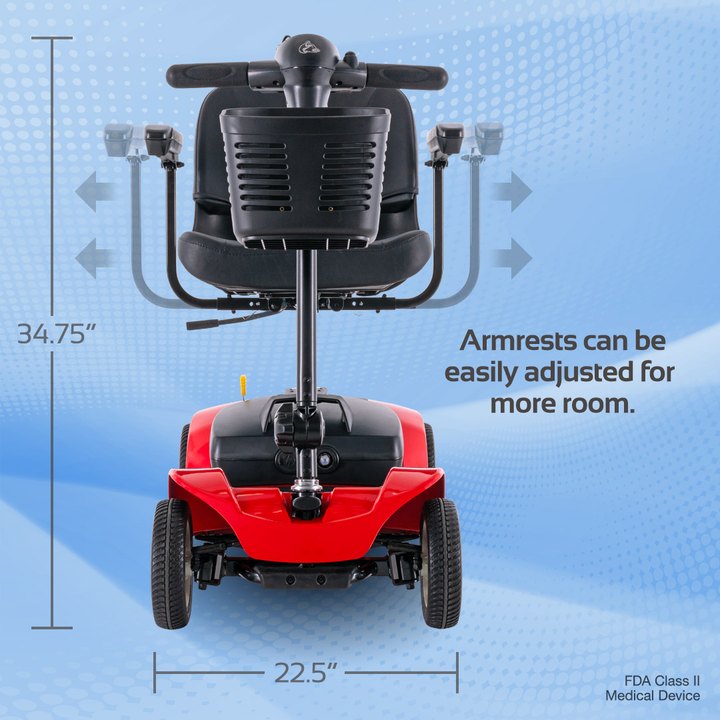

- Overall width
- 22.5 in.
- Overall height
- 34.75 in.
- Weight without batteries
- 81.5 lb., including standard seat; product weight, not shipping weight.
- Total product weight
- 101.5 lb., including battery pack; per manufacturer brochure.
- Battery pack weight
- 20 lb.; may vary by battery manufacturer.
- Disassembly

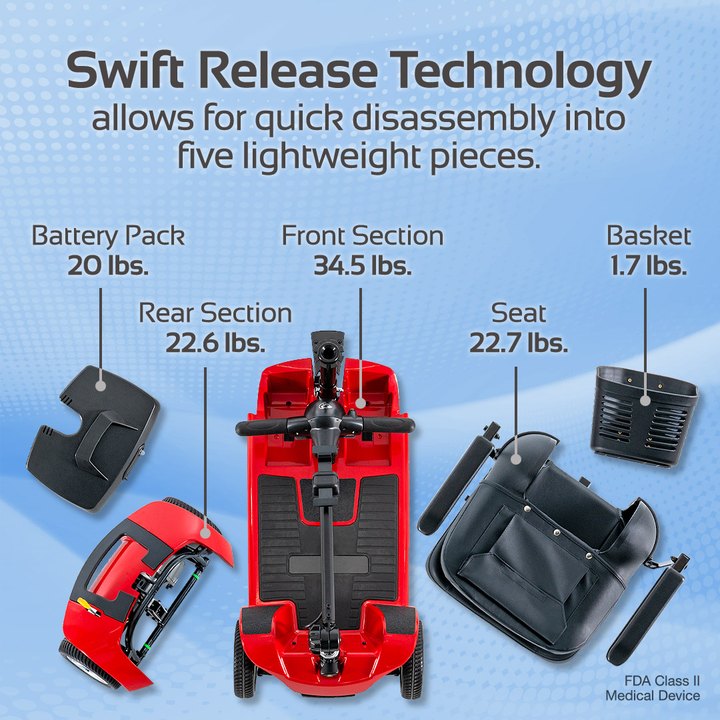

- Five pieces: front section, rear section, seat, battery pack and basket
Seating and drive
- Seat size
- 17 in. wide × 17 in. deep
- Seat material
- Black vinyl
- Seat-to-deck height
- 15.5–18 in.
- Seat weight
- 22.7 lb.
- Tires
- 8 in. solid, front and rear
- Drive
- Rear-wheel drive; single 24-volt DC motor
- Brakes
- Regenerative and electromechanical
Battery and specification notes
- Battery requirements
- Two 12-volt, 12 Ah sealed lead-acid, non-spillable deep-cycle batteries
- Charger
- 2 amp off-board charger
- Performance caveat
- Speed and range vary with user weight, terrain, battery rating, charge and condition, drivetrain and tires; stated variance +10% / -5%.
- Measurement caveat
- Manufacturer marks dimensions and certain measurements as subject to ±3% tolerance. Specifications may change without notice.
Available attributes
- Wheel count
- 4
- Color
- Red
- Weight capacity
- 300 lb.
- Battery capacity
- 12 Ah
- Seat size
- 17 × 17 in.
More product views
Gallery
Manuals and documents
Product resources
Coverage information
Warranty
Manufacturer limited warranty for U.S. products: three years on specified structural frame components, two years on specified mechanical and electrical assemblies, and six months on eligible Mega Motion batteries. Coverage is subject to the original-purchaser terms, exclusions and service requirements in the linked warranty document.
