Rascal Venture 3-Wheel Mobility Scooter
SKU: RSC39
A compact three-wheel travel scooter with a 33-inch turning radius, adjustable swivel seat, front basket, and Swift Release disassembly into five pieces. Supports up to 300 lb with a maximum speed of 4 mph.
Product inquiry
Interested in this product?
Call our team or send an inquiry with questions about this product.
Product details
Key features
- Swift Release disassembly into five pieces
- 33-inch turning radius
- Three solid, flat-free 8-inch tires
- Height-adjustable 17 × 17-inch swivel seat
- Adjustable tiller angle and armrest width; flip-up armrests
- Front basket and rear storage pocket
- 300 lb weight capacity; up to 4 mph
- Removable 12 Ah battery pack and 2 amp off-board charger
- Regenerative and electromechanical braking
Overview
Product description
The Rascal Venture 3-Wheel is a compact travel scooter for everyday trips and maneuvering through tighter spaces. Its three solid 8-inch tires and 33-inch turning radius help it navigate areas such as store aisles. A front basket and rear seat pocket provide space for small essentials.

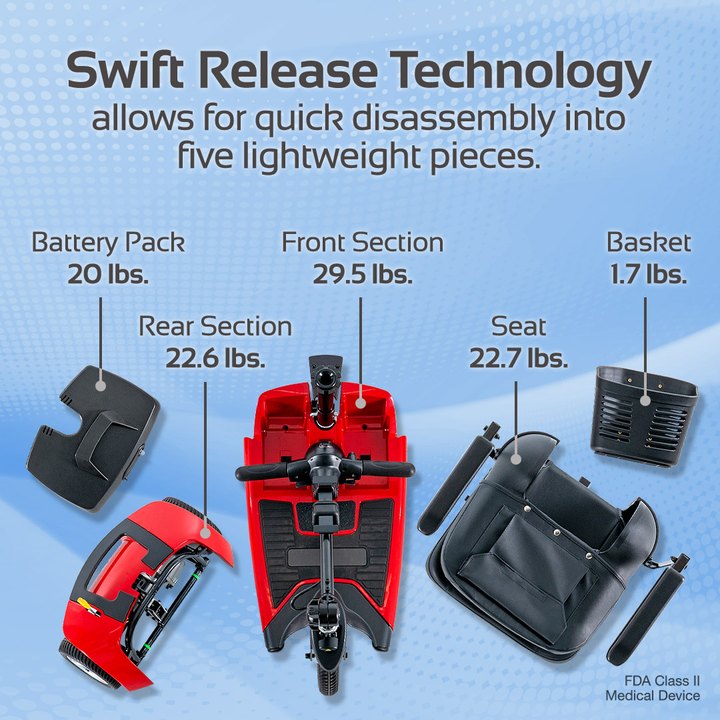

Adjust the tiller angle, seat height, and armrest width to suit your position. The black vinyl swivel seat measures 17 by 17 inches and folds for transport. Swift Release Technology separates the scooter into five pieces for storage and travel.
The Venture 3-Wheel supports up to 300 lb and reaches up to 4 mph. The manufacturer specification sheet lists up to 10.1 miles per charge at a 200 lb rider weight, or up to 8.1 miles at 300 lb. It uses a removable 12 Ah sealed lead-acid battery pack, an off-board 2 amp charger, and regenerative and electromechanical braking.
Range and speed depend on rider weight, terrain, battery charge and condition, tires, and other operating conditions; the manufacturer lists a +10%/-5% performance variance. Dimensions may vary by ±3%. The brochure rounds the range figures to 10 and 8 miles. Specifications are subject to change; consult the linked manufacturer documents for full details.
Measurements and options
Specifications
Performance
- Model
- RSC39 (3-wheel)
- Weight capacity
- 300 lb
- Maximum speed
- Up to 4 mph; varies with operating conditions (+10%/-5% manufacturer variance)
- Range per charge
- Up to 10.1 miles at 200 lb rider weight; up to 8.1 miles at 300 lb (specification sheet); brochure rounds to 10/8 miles
- Turning radius
- 33 in.
- Reversing width (K-turn)
- 42 in.
- Ground clearance
- 1.26 in. at motor
- Maximum rated slope
- 6° (10.5%)
- Maximum obstacle climbing ability
- 2 in. ascending/descending; see owner manual for operating guidance
- Drive system
- Rear-wheel drive; single 24-volt DC motor
- Braking system
- Regenerative and electromechanical

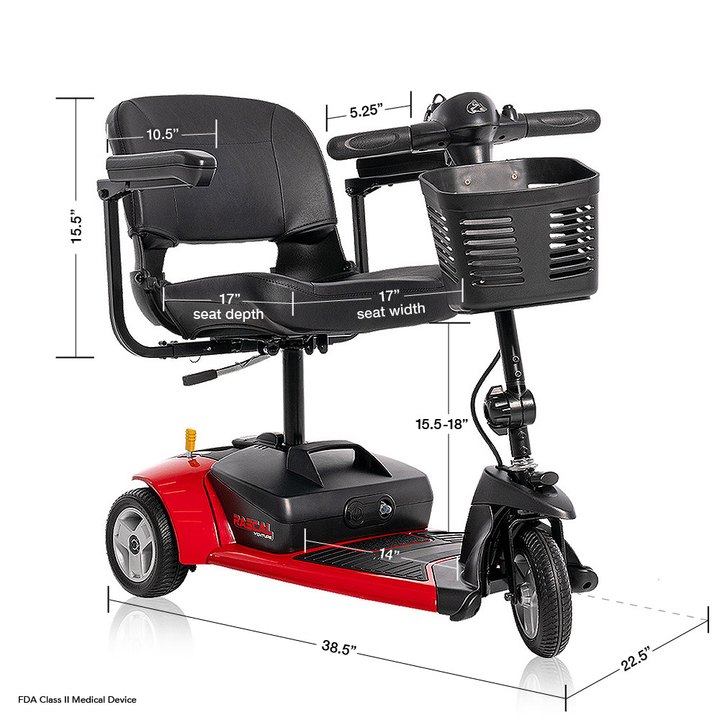

Size, seating and transport
- Overall length
- 38.5 in.
- Overall width
- 22.5 in.
- Overall height
- 34.75 in.
- Tires
- Solid; 8 in. front and rear
- Seat size
- 17 in. wide × 17 in. deep
- Seat material
- Black vinyl on molded plastic
- Seat-to-deck height
- 15.5–18 in.
- Seat weight
- 22.7 lb
- Total weight without batteries
- 76.5 lb including standard seat
- Total weight with battery pack
- 96.5 lb (manufacturer brochure; battery weight may vary)
- Disassembly
- Five pieces using Swift Release Technology
- Dimensional tolerance
- Manufacturer dimensional specifications may vary by ±3%
Battery and charging
- Battery requirements
- Two 12-volt, 12 Ah sealed lead-acid, non-spillable deep-cycle batteries in a removable pack
- Battery pack weight
- 20 lb; may vary by battery manufacturer
- Charger
- 2 amp off-board charger
- Battery compatibility
- Use batteries and charger supplied or approved for this model; see owner manual
Available attributes
- Model
- RSC39
- Manufacturer SKU
- RSC39RED1001
- Wheel count
- 3
- Color
- Red
- Tire type
- Solid / flat-free
- Battery capacity
- 12 Ah
- Seat size
- 17 × 17 in.
- Weight capacity
- 300 lb
More product views
Gallery
Manuals and documents
Product resources
Coverage information
Warranty
See the linked Rascal scooter limited warranty for manufacturer coverage, eligibility, exclusions, and service requirements. Abby-specific warranty terms have not been provided.
