Rascal Power Mobility
Rascal Conquest 4-Wheel Mobility Scooter
SKU: RSC104RED1001
A four-wheel scooter with a 350 lb. capacity, adjustable swivel seat, solid tires, front basket, rearview mirror, and LED headlight. Manufacturer-rated range reaches up to 16.9 miles per charge at a 200 lb. rider weight.
Product inquiry
Interested in this product?
Call our team or send an inquiry with questions about this product.
Product details
Key features
- 350 lb. weight capacity

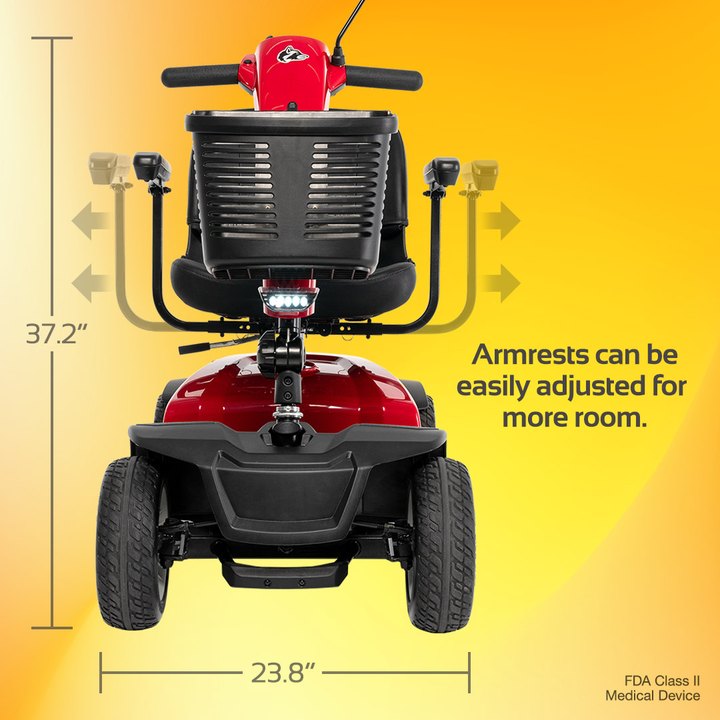

- Height-adjustable swivel seat with width-adjustable flip-up armrests
- Adjustable steering tiller
- Solid, flat-free tires
- Front basket and rear storage pocket
- LED headlight and rearview mirror included
- Off-board charging with an accessible tiller charging port
- Tool-free disassembly for transport and storage
Overview
Product description

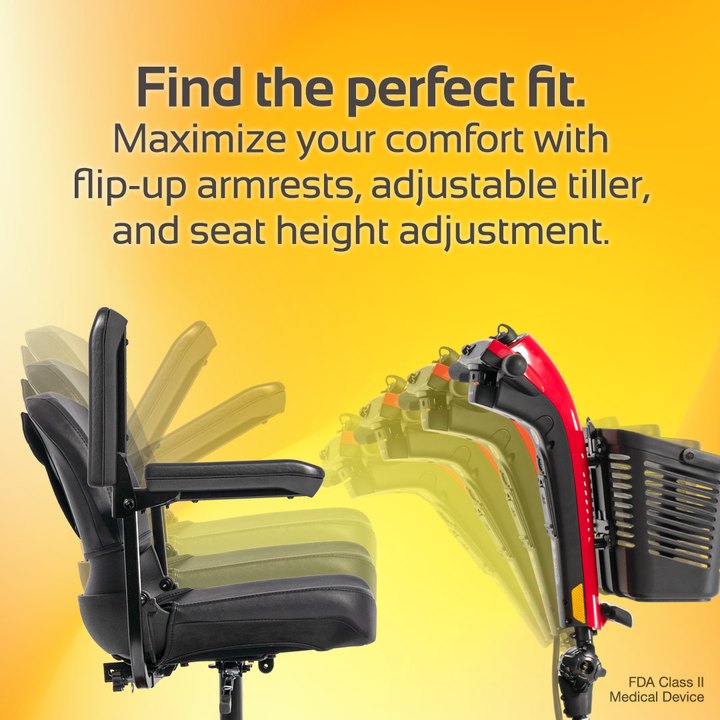

The Rascal Conquest 4-Wheel is a mid-size mobility scooter with a 350 lb. weight capacity. A height-adjustable swivel seat, width-adjustable flip-up armrests, and adjustable tiller let you tailor the seating position. A front basket and rear storage pocket keep everyday items close.

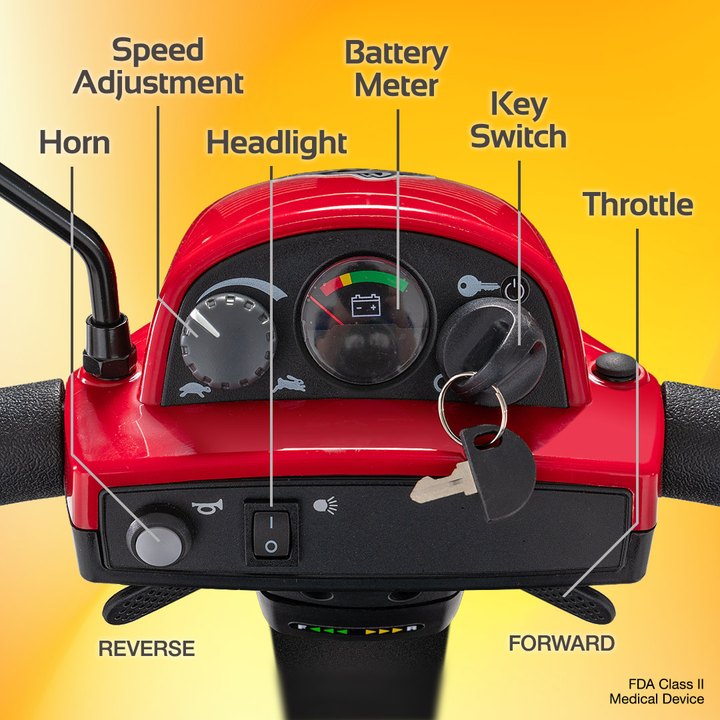

The tiller groups the speed control, battery meter, horn, key switch, and forward/reverse throttle in one place. An LED headlight and rearview mirror come included. The scooter separates into components without tools for transport or storage; some pieces are heavy and may require help to lift.
Rascal rates the four-wheel model for up to 16.9 miles per charge at 200 lbs. and up to 10.5 miles at 350 lbs. Actual speed and range depend on rider weight, terrain, battery capacity and condition, and other operating conditions. Review the linked owner’s manual for setup and operation.
Measurements and options
Specifications
Performance
- Model
- RSC104 (4-wheel)
- Weight capacity
- 350 lbs.
- Maximum speed
- Up to 6 mph; operating conditions affect performance
- Range per charge
- Up to 16.9 miles at 200 lbs.; up to 10.5 miles at 350 lbs.
- Turning radius
- 51.75 in.
- K-turn reversing width
- 63.74 in.
- Ground clearance
- 2.44 in. at motor
- Maximum rated slope
- 6°
- Maximum obstacle climbing ability
- 3.54 in. ascending/descending

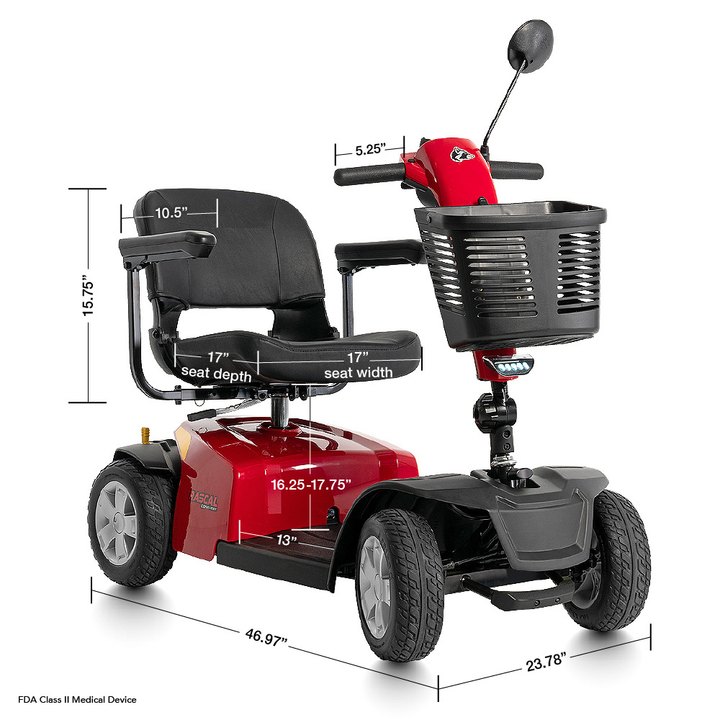

Size, weight and seating
- Overall length
- 46.97 in.
- Overall width
- 23.78 in.
- Overall height
- 37.2–38.23 in.
- Weight without batteries
- 124.8 lbs.; includes standard seat
- Total scooter weight
- 169.2 lbs. including batteries, per manufacturer brochure; not shipping weight
- Seat size
- 17 in. wide × 17 in. deep
- Seat-to-deck height
- 16.25–17.75 in.
- Seat material
- Black vinyl
- Seat weight
- 22.8 lbs.
Wheels, drive and batteries
- Front tires
- 10 in. solid (4-wheel model)
- Rear tires
- 10.75 in. solid
- Drive system
- Rear-wheel drive; sealed transaxle; 24-volt DC motor
- Brakes
- Regenerative and electromechanical
- Battery requirements
- Two 12-volt deep-cycle batteries; U1 size
- Battery weight
- 22.2 lbs. each; varies by battery manufacturer
- Charger
- Off-board
Manufacturer specification notes
- Performance variation
- Speed and range can vary +10%/−5% with model, rider weight, terrain, battery capacity, charge and condition, motor/controller and tires.
- Dimensional tolerance
- Marked dimensional specifications may vary ±3%; specifications may change without notice.
Available attributes
- Wheel count
- 4
- Color
- Red
- Weight capacity
- 350 lbs.
- Tire type
- Solid / flat-free
- Seat size
- 17 × 17 in.
- Battery system
- Two 12-volt deep-cycle U1 batteries
More product views
Gallery
Manuals and documents
Product resources
Coverage information
Warranty
The manufacturer’s U.S. limited warranty provides three-year coverage for specified structural frame components and two-year coverage for specified mechanical and electrical components. Mega Motion-supplied batteries have six-month coverage. Coverage applies to qualifying defects and includes exclusions, service conditions, and limitations; see the linked manufacturer warranty for full terms.
